The sheet loader with suction cups is an automatic loading system for lines starting with sheet. The system is made up of a welded base on which the pneumatic zone for the movement of the suction cups is fixed. The suction cups take the sheets from its space below.

This bench consists of a welded mainframe above which there is a machined platform. The interchangeable, hydraulically controlled punching and notching units are installed above this platform. The punching heads are manually adjustable on the width (x axis) by means of hand-wheels. These units are independent and equipped with specific controls and adjustments that can be included or excluded depending on the model to be done programmed.

Simple motorised transport belt. It has to transport the piece from one working zone to another. Made up of a welded metal structure, it is completed with the insertion of rotating belts that transport the piece. The movement is through an electric motor.

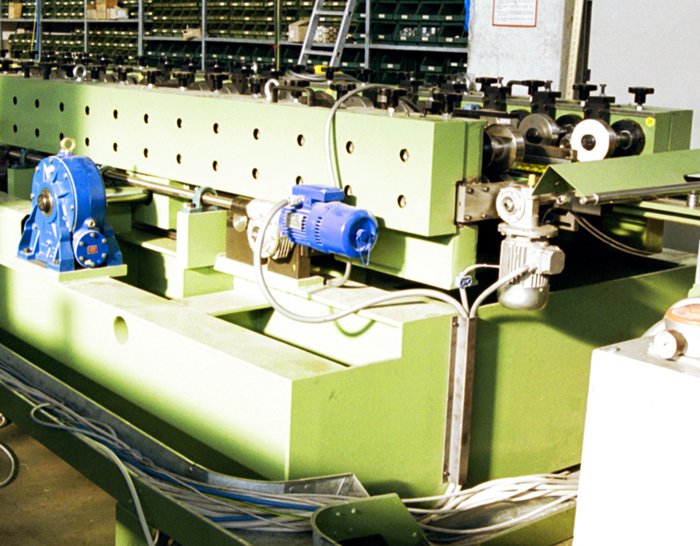

The PMD type roll forming machine is particularly suitable for the production of panels and profiles for shelving, trapezoidal sheets, “C” and “U” profiles, sandwich panels and cable channels, etc. The particularity of this machine is based on the possibility to change some dimensions very quickly. For this reason the machine is equipped with profiling cassettes with opposing overhung shafts. The cassettes can be moved through a motor operated by the control system.

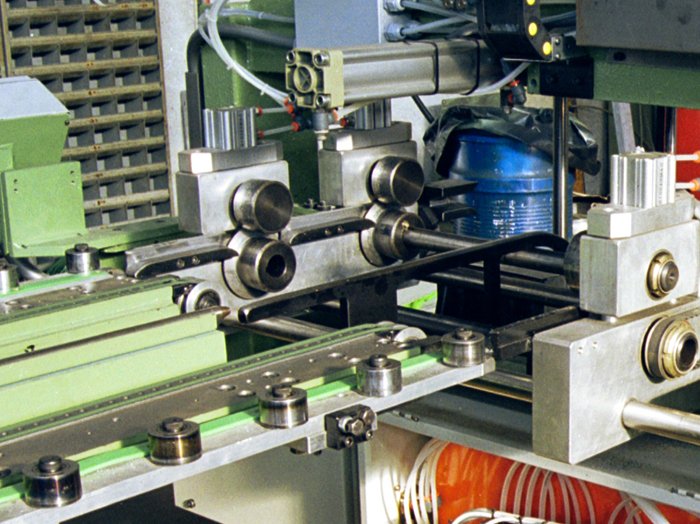

It is a set of forming rolls, made of tempered and rectified steel to make the profile requested by the client. The series of rolls is characterized by high precision and durability. Their function is at the heart of the whole plant; for this reason PM follows with particular precision the whole development (the whole process of roll-making is executed internally).

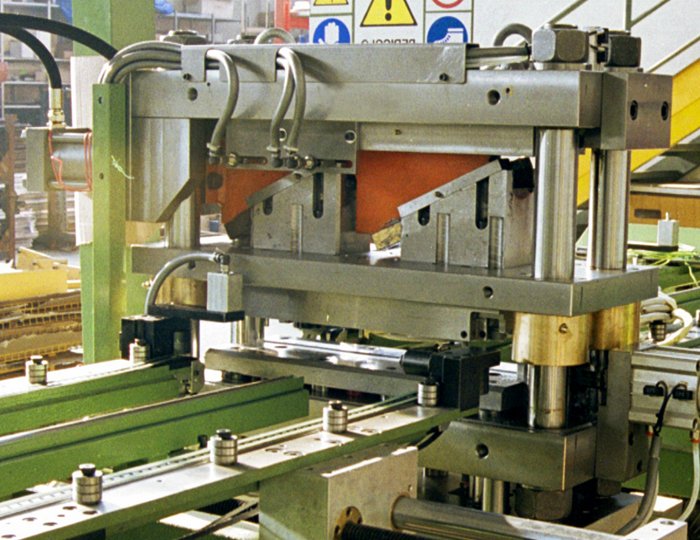

Bending unit which carries out the last processing of the piece before the unloading. As its name says, this unit executes bending on the head. It is made up of a welded base and the bending dies with hydraulic movement.

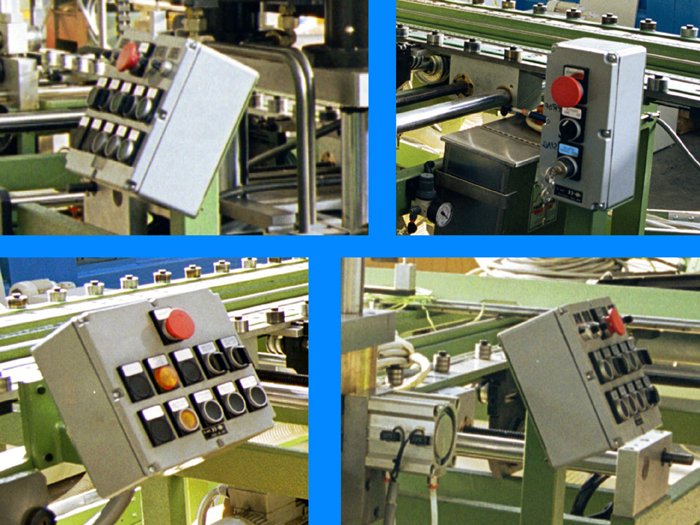

The whole electric installation is intended here. Electric cabinet, cable channels, control desk and software for the management of the line parameters, all according to the highest standards of quality and efficiency.

L'impianto idraulico è necessario nelle operazioni di taglio e nelle unità idrauliche di punzonatura o scantonatura. È composto dalla centralina (di potenza tale da soddisfare tutte le lavorazioni), dai collegamenti meccanici (tubature e valvole) e dal software di controllo e gestione.

Series of wire mesh, infrared photocells and sensors for the protection of the operators. They are installed on the line to avoid any accident that could cause physical damages to the operators
